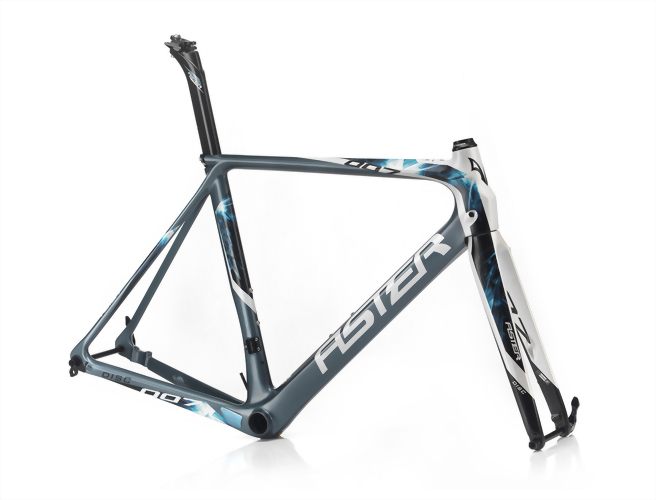

007 DISC BLUE BLACK
007 DISC
• Frame Size: 46/ 49/ 52/ 55 /58 CM
• Frame Material: full carbon
• Headset:upper 1-1 / 8 "
lower 1-1 / 2 "
• Bottom bracket: BB-86
• Frame weight: 1098 g (49 cm)
• Assembling bike weight: 7.0 kg( 52 CM/ SRAM FORCE/ 27 mm wheels /without Pedals)
• Capable for SHIMANO system
Fram set |
||||
| Frame | ASTER 007 DISC carbon frame | |||
| Fork | ASTER carbon fork | |||
| Seat post | ASTER carbon seat post | |||
Transmission - shift – brakesystem |
||||
| Shift levers |
|
SHIMANO 105 R7020 |
SHIMANO ULTEGRA R8020 |
|
| Front derailleur | ||||
| Rear derailleur | ||||
| Brake | SHIMANO Hydraulic | SHIMANO Hydraulic | ||
| Brake levers |
|
SHIMANO 105 R7020 |
SHIMANO ULTEGRA R8020 |
|
| Crankset | ||||
| Free wheel | ||||
| Chain |
|
|||
| Speed |
|
22 | 22 | |
| Remark | group set | group set | ||
Parts |
||||
| Wheelset |
|
ASTER | ASTER | |
|
|
AD-25 | AD-25 | ||
|
|
bearing wheelset | bearing wheelset | ||
| Tires |
|
700C | 700C | |
|
|
Continental | Continental | ||
|
|
or Vittoria | or Vittoria | ||
| Handle bar |
|
Carbon | Carbon | |
| Stem | Carbon | Carbon | ||
| Saddle | ASTER | ASTER | ||
Specifications are subject to change for improvement without notice.
| 007 DISC GEOMETRY | |||||||
| A | Frame size | XS/460 | S/490 | M/520 | L/550 | XL/580 | unit |
| B | Top tube length | 505 | 525 | 540 | 565 | 585 | mm |
| C | Seat tube angle | 74.5 | 74 | 73.5 | 73.5 | 73.5 | ∘ |
| D | Head tube angle | 71 | 72 | 73 | 73 | 73 | ∘ |
| E | Head tube length | 115 | 135 | 150 | 165 | 190 | mm |
| F | Chain-stay length | 410 | 410 | 410 | 410 | 410 | mm |
| G | Wheelbase | 968 | 970 | 970 | 996 | 1016 | mm |
| H | Reach | 363 | 372 | 381 | 392 | 405 | mm |
| I | Stack | 512 | 534 | 552 | 566 | 590 | mm |
| J | Fork length | 370 | 370 | 370 | 370 | 370 | mm |
| K | Fork offset | 45 | 45 | 45 | 45 | 45 | mm |
